1. A module chip using PCF8591
2. module supports external voltage input capture (input voltage range 0-5v)
3. Three modules integrated photoresistor acquisition environment through the AD intensity accurate numerical
4. modules integrated thermistor, can capture the precise value of the ambient temperature through the AD
5. The five-module integrated 1 channel 0-5V voltage input acquisition (blue potentiometer to adjust the input voltage)
6. modules with power indicator light (on the module after power indicator lights)
7. modules with the DA output indicator light board DA output indicator module DA output interface voltage reaches a certain value, the voltage the greater the light brightness is more obvious;
8. module PCB size: 3.6cm * 2.3cm
9. standard double-sided, plate thickness 1.6mm, the layout is nice, surrounded by the through-hole, aperture: 3mm, convenient fixed
PCF8591 operating voltage range of 2.5V to 6V
Low standby current
Through the I2C bus serial input / output
PCF8591 by 3 hardware address pins addressing
Sampling rate PCF8591 I2C bus rate decided
4 analog inputs programmable as single-ended or differential inputs
Automatic incremental channel selection
PCF8591 analog voltage range from VSS to VDD
PCF8591 built-in track and hold circuit
8-bit successive approximation A / D converter
Through an analog output DAC gain
The module's left and right, respectively, the external expansion of 2-way pin interface, respectively, as follows:
Output interface of the left the AOUT chip DA
The AINO chip analog input interface.
AIN1 chip analog input interface
AIN2 chip analog input interface
AIN3 chip analog input interface
The right side of the SCL IIC clock interface to access the microcontroller IO port
The SDA IIC digital interface connected microcontroller IO port
GND module to an external
VCC power supply interface external 3.3v-5v
Module red jumper instructions for use
Module three red short circuit cap, respectively, the role are as follows:
P4 connected to the P4 jumper, select thermistor access circuit
P5 connected to P5 jumper to select the photoresistor access circuit
P6 connected to the P6 jumper, to select 0-5V adjustable voltage access circuit
1 X PCF8591 Module
4 X Dupond Cable
Resistance and precision R25: 100kΩ ± 1% (at25 ℃)
B value and accuracy B25 / 85: 3950K ± 1%
Dissipation factor: 2 mW / ℃ (in air)
Thermal time constant: 12 s (in air)
Power Rating: 2.5 mW (at 25 ℃)
Operating temperature: -40 ~ 250 ℃
1 x 100Kohm NTC Thermistor

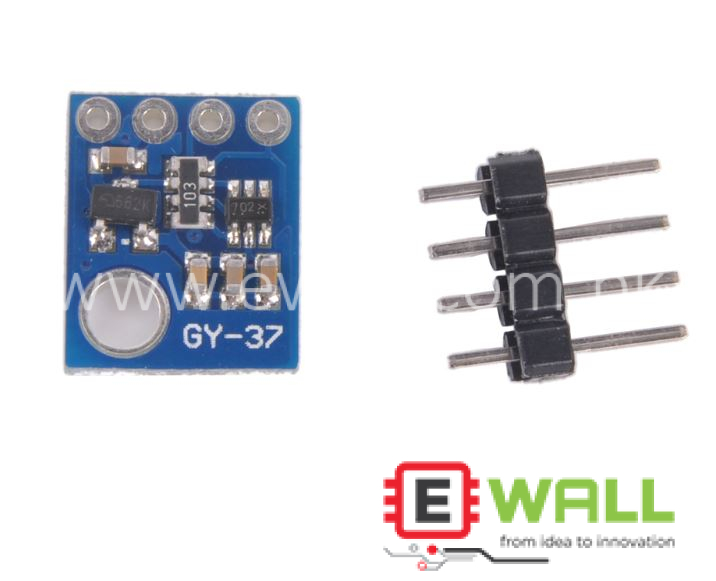

Description: The ML8511 breakout is an easy to use ultraviolet light sensor. The MP8511 UV (ultraviolet) Sensor works by outputing an analog signal in relation to the amount of UV light that’s detected. This breakout can be very handy in creating devices that warn the user of sunburn or detect the UV index as it relates to weather conditions...more detail given below
Description: The ML8511 breakout is an easy to use ultraviolet light sensor. The MP8511 UV (ultraviolet) Sensor works by outputing an analog signal in relation to the amount of UV light that’s detected. This breakout can be very handy in creating devices that warn the user of sunburn or detect the UV index as it relates to weather conditions.
This sensor detects 280-390nm light most effectively. This is categorized as part of the UVB (burning rays) spectrum and most of the UVA (tanning rays) spectrum. It outputs a analog voltage that is linearly related to the measured UV intensity (mW/cm2). If your microcontroller can do an analog to digital signal conversion then you can detect the level of UV!
Thermistor Temperature Sensor NTC MF52-103 3435 10K ohm 1%
Highly accurate, digital laser photo tachometer: measure rotational speed with a visible red light beam from a powerful LED. It's a great tool to measure the RPM of motors and machine parts, the speed of a lathe or milling machine for metal or wood working, or for HVAC applications to measure fan speed. To take the measurement, apply a reflective mark (included in package) onto the target object, aim the laser beam at the mark, the RPM displays on the LCD screen. Size : 180 x 72 x 37 mm (7.0 x 2.8 x 1.5").
Description: This is a piezoresistive force sensor from Tekscan. The harder you press, the lower the sensor’s resistance. Pressing hard, the resistance changes from infinite to ~300k. The sensor itself is thin and flexible, but the resistance does not change while being flexed. Resistance changes only when pressure is applied to the round area at the end ...more detail given below
Description: This is a piezoresistive force sensor from Tekscan. The harder you press, the lower the sensor’s resistance. Pressing hard, the resistance changes from infinite to ~300k. The sensor itself is thin and flexible, but the resistance does not change while being flexed. Resistance changes only when pressure is applied to the round area at the end of the sensor. Used as a presence sensor (someone standing), weight sensor, pressure sensor (impact testing), etc.
The overall length is about 8.5". Sensor comes with 0.1" spaced, reinforced, breadboard friendly connector.
This sensor comes in three flavors. This sensor ranges from 0 to 100lbs of pressure in the mega-ohm range.
High quality and good performance.
Used for a DC 50A current Amp meter.
Easy to install.
Accuracy: Class 0.
Voltage Drop: 75MV.
Material: Steel, cupro-managanese, plastic
Dimension (L x W x H): Approx. 4 1/2 x 1 x 3/4 inch (12 x 2.5 x 1.8cm)
This is 100A 75mV FL-2 DC current shunt resistor for amp ampere panel meter
The fixed setpoint shunt is a suitable the attached external shunt for measuring DC current in 10kA less directly acting on the analog display instrument together with the use in order to expand the scope of the DC current measurement, or sequentially circuit can be regarded as the current sampling with the standard resistors, a sampling voltage is measured with a current can be regarded as an analog signal.
Accuracy level :2-4000A, 0.5 level; 5000-10000A, 1 level.
Environmental conditions: -40 ~ +60 ℃, the relative temperature ≤ 95% (35 ° C)
Overload performance: 120% of rated current, 2 hours
Voltage drop: 75mV
Load heat: Temperature rise changes stabilized, rated current of 50A does not exceed 80 ° C; rated current of 50A does not exceed 120 ° C
Slot Type on the radio using optical, non-transparent objects can be triggered by Slot Type, output 5V TTL level. Schmitt trigger pulse to shake, can be used to measure car speed, distance measurement applications!
Four pin defined as +5 GND OUT1 OUT2, OUT1 OUT2 is level output! Direct access to the microcontroller IO port, each way with a LED indicating the output status
1 X 2WD Speed Module
